Temperature Control Systems: A Complete Guide to Industrial Heating

Temperature Control Systems: The Complete Industrial Heating Solution

Industrial heating is rarely just about generating heat. In manufacturing, the ability to measure, regulate and maintain temperature can be just as important as the heating element itself.

Whether the application involves an oven, furnace, mould, die, duct, tank, process line or specialized machinery, an effective temperature-control system typically brings together four key elements:

Heater → Temperature Sensor → Temperature Controller → Power Controller

When these components are selected as a complete system, the result is a more coordinated approach to industrial heating and temperature regulation.

At Techno-park Inc., temperature control is part of a broader industrial automation and thermal-engineering offering. The company manufactures industrial heaters and thermocouples and supplies process controllers and automation components. Its B2B platform, TPIPro+, provides an online route for sourcing these products and other industrial automation components. Techno-park Inc.

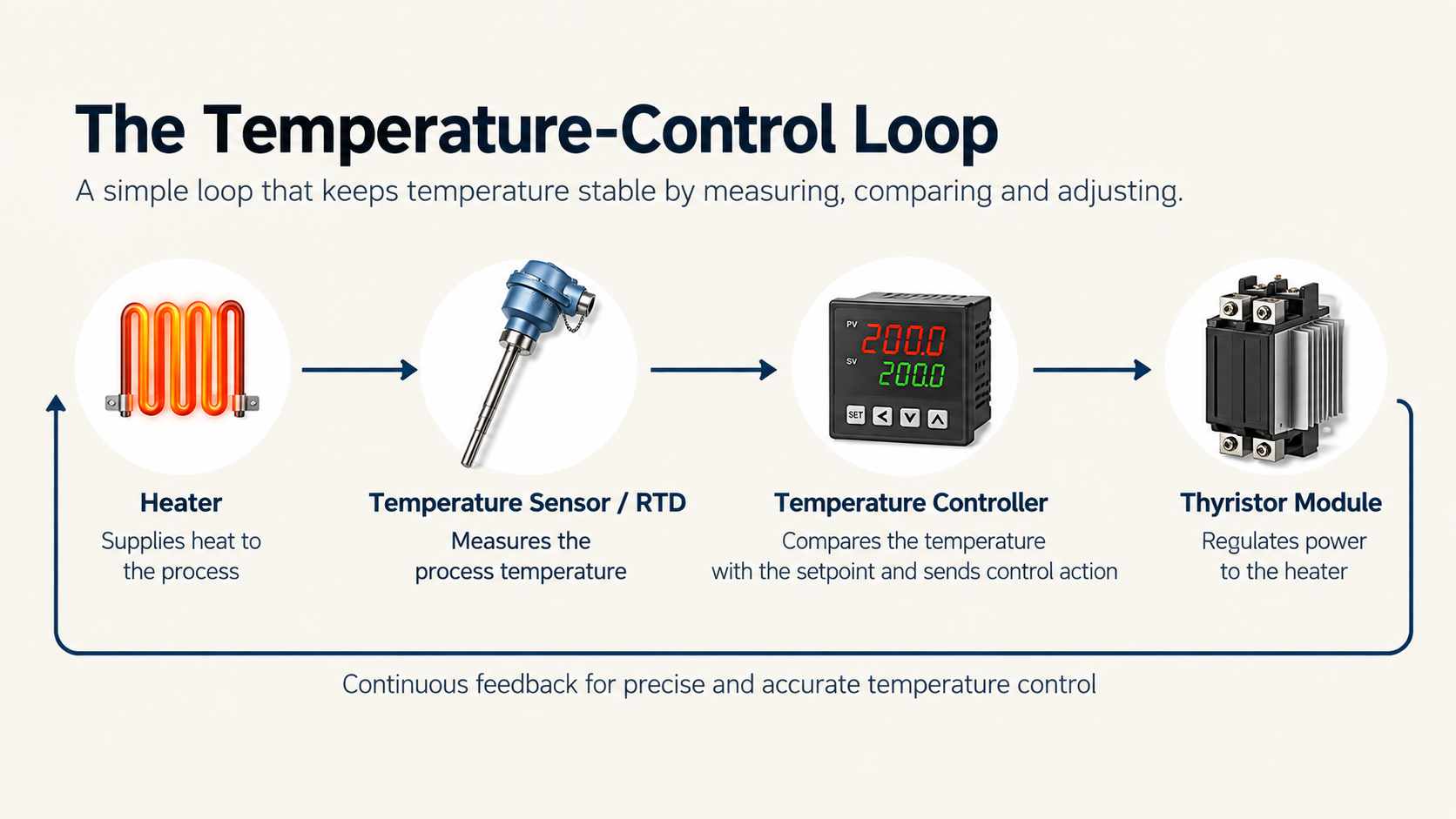

Understanding the Temperature-Control Loop

A basic industrial temperature-control system works on a simple feedback principle:

Heat → Measure → Compare → Control → Heat

The heater supplies thermal energy to the process. A thermocouple or RTD measures the resulting temperature. The temperature controller compares the measured value with the desired setpoint and determines the required control action. A power-control device, such as a thyristor module, can then regulate the electrical power delivered to the heater.

The sensor feeds information back into the controller, creating a continuous control loop.

This is why temperature control should be approached as a system rather than four independent products.

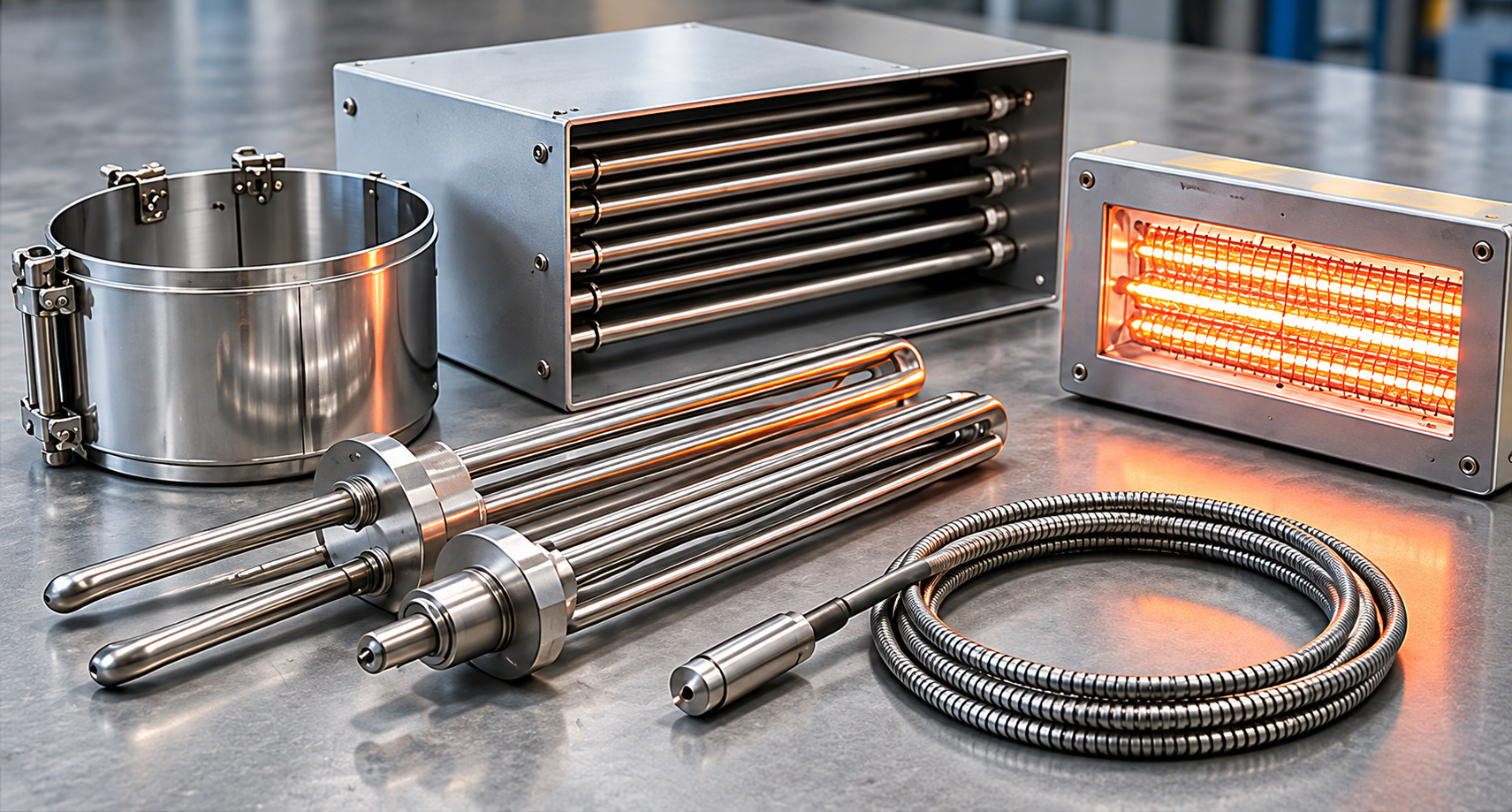

1. Industrial Heaters: The Source of Thermal Energy

The first component is, naturally, the heater.

But industrial heating requirements vary significantly from application to application. A cylindrical process barrel may require a band heater, while a mould may use cartridge heaters. Air-handling equipment may require duct heaters, while liquid heating applications may use immersion heaters.

TPIPro+ offers multiple industrial heater configurations, including.

• Band Heaters
• Cartridge Heaters
• Tubular Heaters
• Duct Heaters
• Infrared Heaters
• Immersion Heaters

Explore TPIPro+: TPIPro+ Industrial Heating Products

The right heater depends on factors such as the process, required heating capacity, physical dimensions, installation method, operating conditions and heat-transfer requirements.

Techno-park Inc. also manufactures industrial heaters according to application requirements, allowing heating solutions to be approached from an engineering perspective rather than purely as catalogue components. Techno-park Inc.

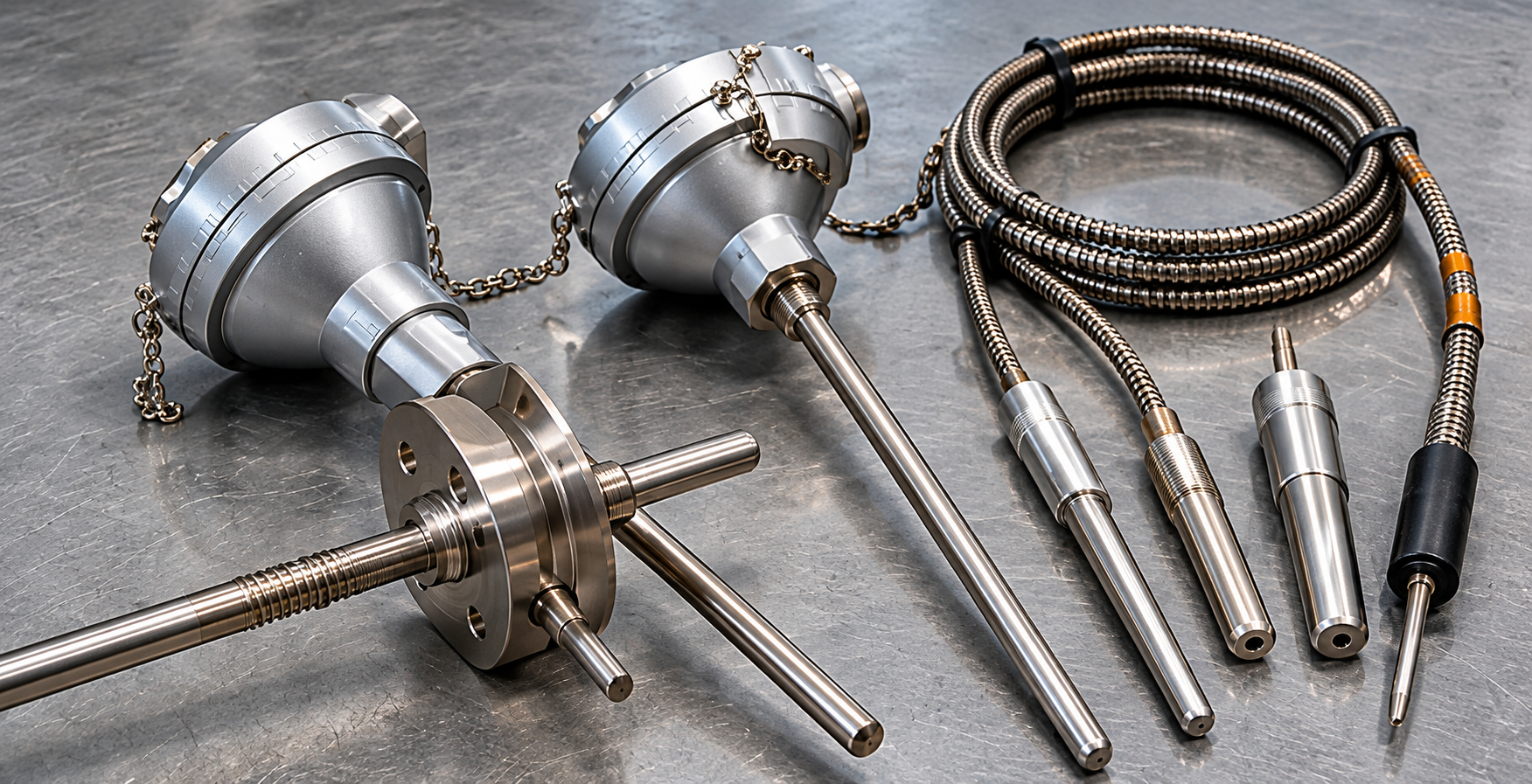

2. Thermocouples & RTDs: Measuring the Process

Generating heat is only half the equation. The control system needs to know how hot the process actually is.

This is where thermocouples and RTDs such as Pt-100 sensors come in.

Thermocouples are widely used for industrial temperature measurement, with different constructions available for different environments and installation requirements. TPIPro+ lists thermocouples with options including different sheath materials, probe diameters, lengths, junction configurations and process connections. TPIPro+

Explore TPIPro+ TC:

TPIPro+ Thermocouple

RTDs, including Pt-100 sensors, provide another widely used method of industrial temperature measurement.

The choice between a thermocouple and RTD depends on the application, including the required temperature range, measurement characteristics, installation environment and controller compatibility.

The important point is that the sensor should measure the temperature that actually matters to the process.

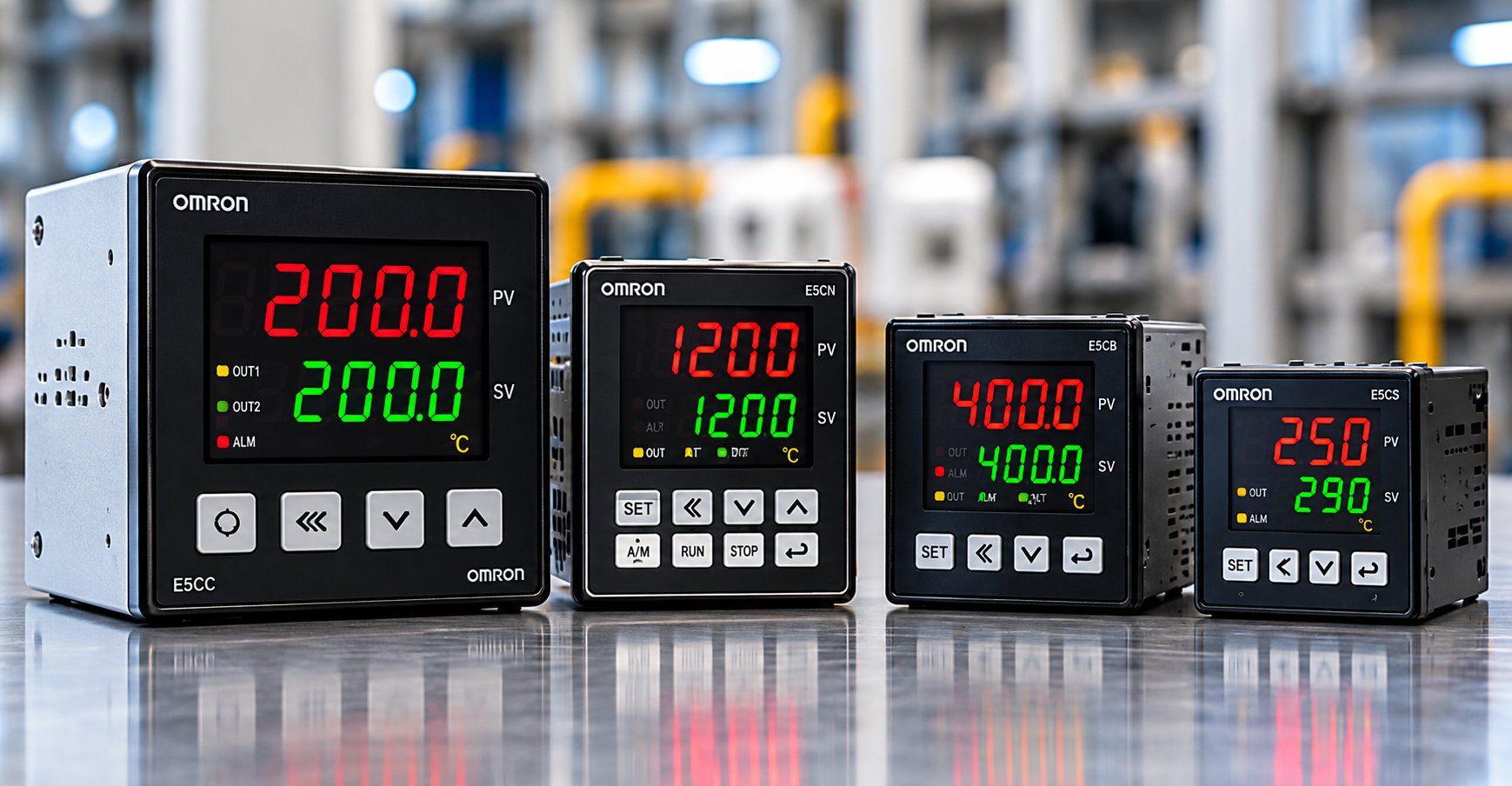

3. Temperature Controllers: The Decision-Maker

Once temperature is measured, the system needs to determine what to do with that information.

That's the role of the temperature controller.

A temperature controller receives the sensor signal, compares the process temperature against the setpoint and produces a control output.

Depending on the selected controller and application, this can involve ON/OFF or PID-based control.

Techno-park Inc. supplies process and temperature controllers from established industrial brands including Autonics, Omron and Chint Electric. Its process-controller range supports applications involving temperature, pressure, flow and level control, with controller configurations supporting TC, RTD and other input signals depending on the model. Techno-park Inc.

TPIPro+ also carries temperature controllers such as the Multispan PRC-1202P profile temperature controller.

Explore TPIPro+:

TPIPro+ Temperature Controller

The controller should be selected according to the sensor, control method, application requirements, output configuration and required operating range.

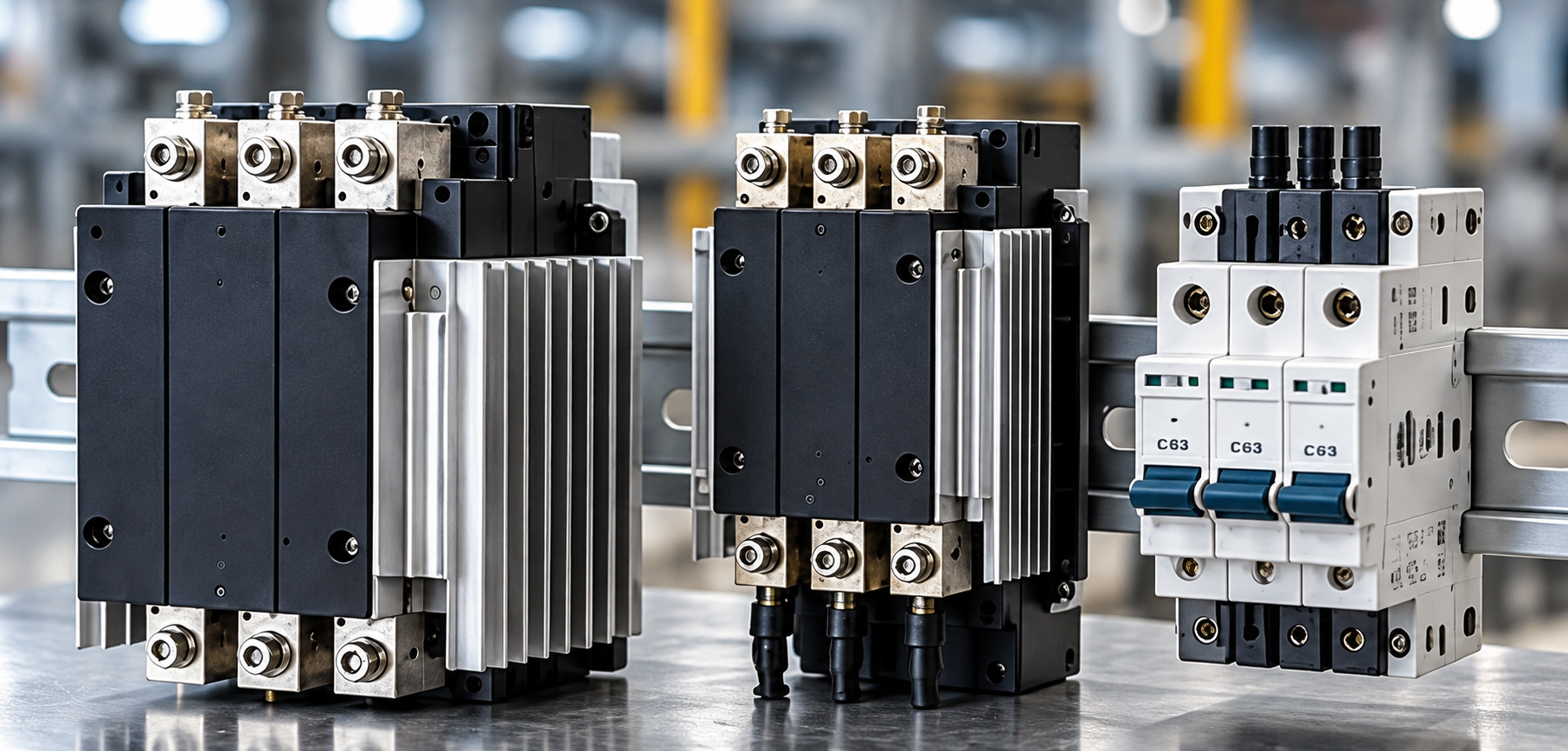

4. Thyristor Modules: Regulating Heater Power

For applications requiring controlled modulation of heater power, a thyristor power controller can become an important part of the system.

The concept is straightforward:

The temperature controller determines the required control action.

The thyristor module regulates power delivered to the heater.

This provides a controlled interface between the temperature-control logic and the electrical heating load.

TPIPro+ carries Autonics thyristor modules, including the SPRS series. The platform currently lists models such as the SPRS-F250 as well as other configurations. TPIPro+

Autonics SPRS-F250 Thyristor Module on TPIPro+

The appropriate thyristor module must be selected according to the heater load, supply arrangement, current requirements and control configuration.

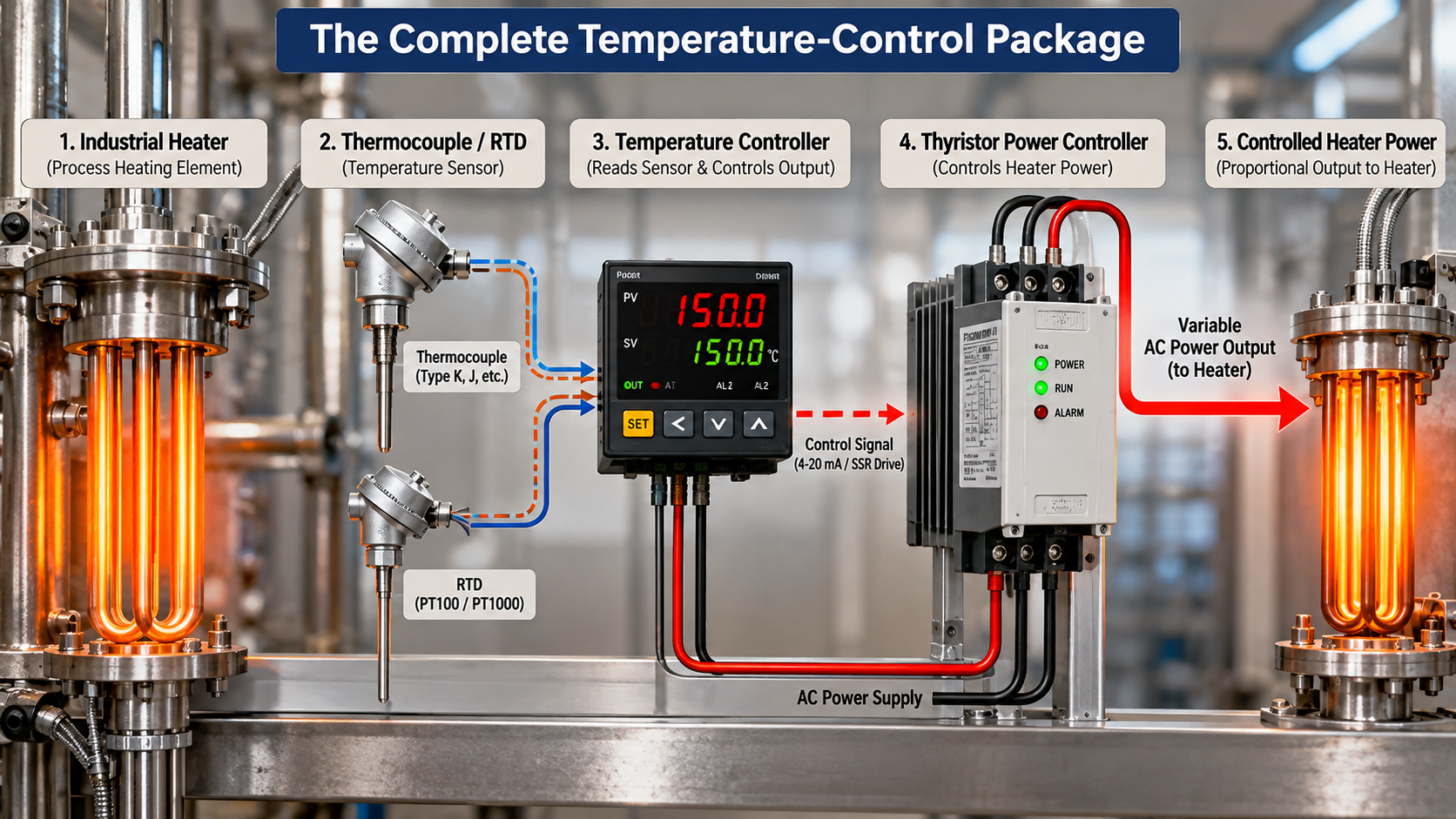

The Complete Temperature-Control Package

The real advantage comes from bringing these components together.

A typical system can be represented as:

Industrial Heater →Thermocouple / RTD → Temperature Controller → Thyristor Power Controller → Controlled Heater Power

The sensor continuously provides temperature feedback. The controller evaluates that feedback against the desired setpoint, and the power-control device regulates the heater accordingly.

This creates a coordinated temperature-control loop rather than a collection of disconnected components.

Why Source the Complete Solution?

Industrial heating projects often involve several suppliers: one for the heater, another for sensors, another for controllers and another for power-control equipment.

There is nothing inherently wrong with that approach. However, it can make component compatibility, specification matching and procurement more complicated.

A system-oriented approach starts with the application and works backwards:

What needs to be heated?What temperature needs to be maintained?Where should temperature be measured?How should heater power be controlled?

From there, the heater, sensor, controller and power-control device can be selected as parts of the same application.

This is where Techno-park Inc.'s combination of industrial automation, thermal engineering and component sourcing becomes valuable. Founded in 2009, the company has evolved from panel building into a broader engineering organization covering automation systems, custom panels, industrial heaters, thermocouples and process-control solutions. Techno-park Inc.

And through TPIPro+, customers can source standard industrial automation and electrical products through an online B2B platform operated by Techno-park Inc. TPIPro+

Build the Right Temperature-Control System

A successful industrial heating system is not simply about choosing a heater.

It is about making the heater, sensor, controller and power-control system work together.

From custom industrial heaters and thermocouples to temperature controllers and thyristor modules, Techno-park Inc. and TPIPro+ provide the components and engineering expertise needed to approach industrial temperature control as a complete system.

Need a temperature-control solution for your application?

Explore the range on TPIPro+ or contact the Techno-park Inc. engineering team to discuss your requirement.

Visit Techno-park Inc.Shop Industrial Automation Products on TPIPro+
